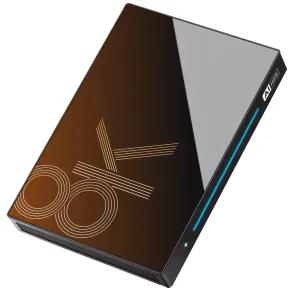

Set-top box for Digital TV Reception: Architecture, Challenges, and Industry Outlook

In a media ecosystem defined by rapid technological convergence, the Set-top box for digital TV reception remains a critical interface between broadcast streams and end-user displays. While traditional broadcast standards such as DVB-T/T2, ATSC, and ISDB have matured, demand for robust reception, seamless decoding, and flexible connectivity persists across residential, hospitality, and enterprise applications. This article examines digital TV set-top boxes from multiple perspectives, including design principles, performance determinants, supply-chain considerations, and emerging trends shaping next-generation reception platforms.

Industry Background and Market Demand

Over the past decade, the transition from analog to digital broadcasting has accelerated globally. Digital terrestrial television (DTT) delivers improved spectral efficiency, higher resolution content, and multiple channels within a single frequency band. Governments and network operators in Europe, North America, Latin America, and parts of Asia have completed or are executing analog switch-offs, creating sustained demand for receiving devices that support current and evolving standards. Commercial environments—such as hotels, hospitals, retail, and corporate campuses—also require Reliable Set-Top Boxes for curated channel delivery or internal IPTV systems.

The pervasive adoption of high-definition (HD) and ultra-high-definition (UHD) content compounds system requirements. In markets with fragmented ecosystems of DVB-C, DVB-S/S2, and ATSC 3.0, manufacturers and integrators must deliver devices capable of flexible modulation decoding, electronic program guide (EPG) support, and networked firmware management. Consequently, the set-top box for digital TV reception remains central to broadcast infrastructure even as over-the-top (OTT) services grow.

Core Concepts and Key Technologies

At its foundation, a set-top box for digital TV reception performs three primary functions: signal acquisition, demodulation/decoding, and output formatting. Signal acquisition involves receiving radio frequency (RF) transmissions via tuner modules designed for specific broadcast standards. In terrestrial systems, antennas connect to tuners that interpret VHF/UHF bands; satellite systems use L-band downconverters feeding quadrature phase shift keying (QPSK) or 8PSK demodulators.

Demodulation converts RF signals into baseband bitstreams. Common modulation schemes include COFDM for DVB-T/T2 and 8VSB for ATSC. Forward error correction (FEC) algorithms—such as low-density parity-check (LDPC) and Reed-Solomon coding—enhance resilience against channel noise. After demodulation, video and audio codecs like H.264/AVC and HEVC/H.265 decode compressed streams into frames suitable for rendering. Middleware often manages EPG data, conditional access modules (CAMs) for encrypted channels, and interactive services.

Product Structure, Performance, Materials, and Manufacturing

A typical set-top box for digital TV reception comprises several subsystems:

1. Tuner and RF Front End: Multi-band tuners with low-noise amplifiers (LNAs) and filters are selected based on targeted broadcast standards. High-quality RF front ends maintain sensitivity across temperature ranges.

2. Processing Core: Application processors with integrated digital signal processors (DSPs) or system on chip (SoC) architectures execute demodulation, decoding, and middleware. Performance metrics—such as throughput, thermal design power (TDP), and memory bandwidth—directly influence stream stability and codec compatibility.

3. Memory and Storage: Soldered DRAM and NAND flash storage support firmware, buffer memory, and user settings. Material selection focuses on endurance and data integrity.

4. Power Supply and PCB: Efficient power modules and multilayer printed circuit boards (PCBs) with controlled impedance are essential for signal fidelity. Regulatory compliance with safety and electromagnetic compatibility (EMC) standards impacts component choices and layout.

Manufacturing processes for these devices emphasize consistent solder quality (e.g., lead-free reflow profiles), automated optical inspection (AOI), and rigorous environmental testing. Conformal coatings may be applied in industrial applications to mitigate humidity and dust effects.

Key Factors Influencing Quality and Performance

Several technical factors dictate set-top box performance:

• Tuner Sensitivity and Selectivity: A tuner’s ability to capture weak signals and reject adjacent channel interference influences real-world reception quality, particularly in fringe areas or dense multiplex environments.

• SoC and Codec Support: The integration of hardware accelerators for HEVC and future codecs determines resolution capability and power efficiency. SoCs with scalable processing pipelines handle simultaneous decoding and interactive applications.

• Thermal Management: Thermal design affects long-term reliability. Poor heat dissipation can throttle performance or induce failures over time.

• Firmware and Middleware Stability: Robust software stacks ensure timely handling of channel changes, EPG updates, and over-the-air (OTA) upgrades. Unstable middleware may manifest as freezes or signal drops.

Supply Chain and Supplier Selection Standards

Selecting suppliers for a set-top box for digital TV reception involves criteria beyond cost:

• Compliance and Certification: Component vendors must provide parts compliant with regional safety, EMC, and broadcast certification requirements (e.g., CE, FCC, CTA-2045). Documentation and traceability are essential for audit readiness.

• Quality Management Systems: Suppliers with ISO 9001 or automotive-grade processes tend to deliver higher consistency. Contract manufacturers adept in surface mount technology (SMT) and in-line testing reduce defect rates.

• Lifecycle Support: Long component availability and access to reference designs or driver support mitigate obsolescence risks. Partners offering firmware customization services can accelerate product differentiation.

• Logistics and Risk Management: Diversified sourcing strategies and inventory buffers help manage global supply chain volatility. Transparency in lead times and capacity planning is vital for production scheduling.

Common Challenges and Industry Pain Points

Manufacturers and integrators face several recurring challenges:

• Standard Fragmentation: Supporting an array of broadcast standards requires flexible hardware and software architectures. Legacy formats coexist with next-generation protocols, complicating testing and certification.

• Interference and Multipath Distortion: Urban environments often introduce multipath reflections, degrading reception. Advanced equalization and adaptive filtering techniques are necessary but add complexity.

• Security and Conditional Access: Encrypted channels require secure key management and CAM integration. Maintaining secure firmware pathways without hindering performance is non-trivial.

• OTA Updates and Versioning: Firmware updates must be delivered reliably across heterogeneous deployment bases without service disruption.

Application Scenarios and Use Cases

Set-top boxes for digital TV reception serve diverse contexts:

• Residential Broadcast Reception: In homes with terrestrial or satellite coverage, set-top boxes convert digital streams to HDMI outputs for televisions, supporting integrated EPG and parental controls.

• Hospitality IPTV Systems: Hotels deploy managed set-top platforms that unify broadcast channels, on-demand content, and property information services. Centralized management enables OTA updates and usage analytics.

• Public Information Displays: Transportation hubs and retail outlets use set-top receivers to deliver branded content on digital signage screens, often synchronized across multiple endpoints.

• Enterprise Training and Media Distribution: Corporate campuses deploy broadcast receivers for internal channels, town halls, or emergency alerts, often integrated with networked media players.

Current Trends and Future Directions

The landscape of digital TV reception is evolving along several fronts:

• Convergence with Broadband: Hybrid broadcast broadband TV (HbbTV) standards enable interactive services by combining traditional reception with IP-delivered content. Set-top designs increasingly include Ethernet or Wi-Fi modules to support these hybrid services.

• Higher Efficiency Codecs: Adoption of HEVC and emerging codecs such as VVC aims to reduce bandwidth requirements for UHD content. This shift demands corresponding processing capabilities within set-top devices.

• Edge Integration and Virtualization: As content delivery networks (CDNs) and edge computing gain traction, some reception functions may be offloaded or augmented by cloud services, shifting the role of hardware toward secure transport and display.

• Sustainability Metrics: Power efficiency, recyclability, and eco-design strategies will influence future product portfolios as regulators and enterprises emphasize environmental performance.

Frequently Asked Questions

What differentiates a Digital Set-Top Box from an OTT streaming device?
A digital TV reception set-top box is optimized to receive broadcast signals via RF channels and decode them according to specified standards. OTT streaming devices focus on IP-delivered content over broadband networks.

Can a set-top box support multiple broadcast standards?
Yes. Modular tuner and demodulator architectures allow devices to support multiple standards (e.g., DVB-T2 and ATSC) through software and hardware configurations, though certification may vary by region.

How important is firmware for long-term device performance?
Firmware affects stability, security, and compatibility with broadcast updates. Robust update mechanisms and field-proven middleware reduce service disruptions.
