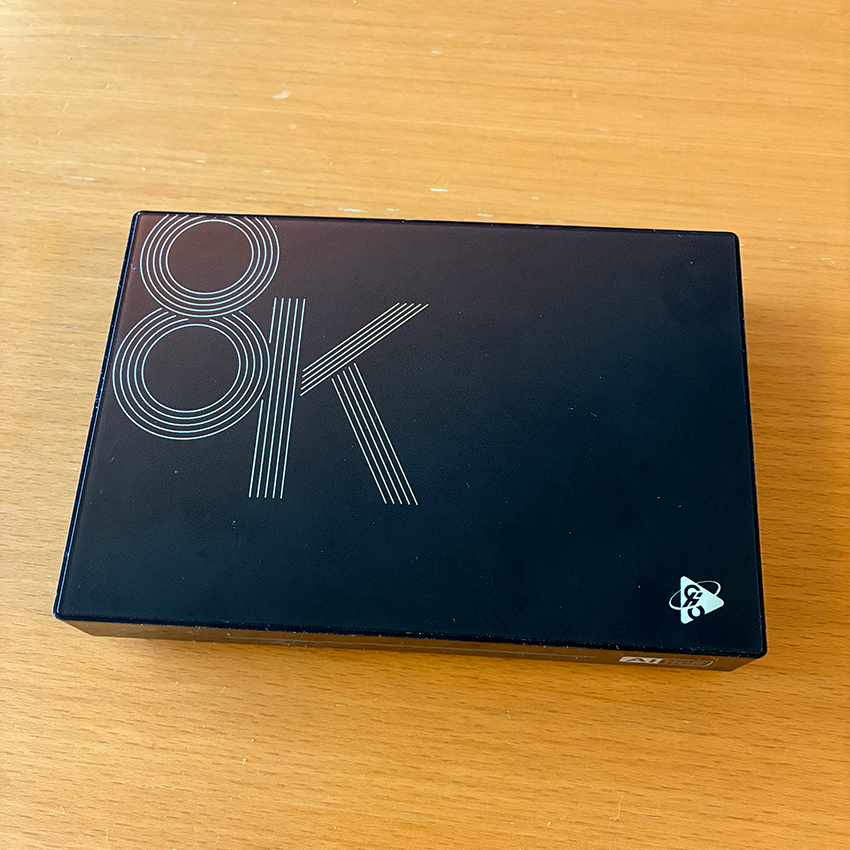

Modern Living Room Smart set-top box Overview

The modern living room smart Set-top box serves as a centralized home entertainment hub, integrating high-definition media playback, multi-platform content, smart home control, and minimalistic interaction. Designed with compact size, broad compatibility, and intuitive operation, it meets the needs of a tidy living room and is suitable for all age groups. The following sections detail core positioning, hardware configuration, system and interaction design, functional scenarios, deployment considerations, and development trends.

1. Core Positioning and Living Room Value

1. Definition: The modern living room smart set-top box connects to traditional or smart TVs via HDMI stick or standalone design. It delivers 4K/8K ultra-HD playback, multi-platform streaming aggregation, voice interaction, and smart home control, turning the TV into a central entertainment and smart control hub. It is designed to meet the modern living room’s requirements for simplicity, intelligence, and integration.

2. Core Value:

• Minimalist Setup: HDMI stick or compact standalone body reduces cable clutter, ideal for ultra-thin TVs and clean living room layouts.

• All-Age Interaction: Voice control, one-touch access, and large-font UI allow seniors and children to operate easily, reducing learning barriers.

• Content Aggregation: Unified access to Netflix, Disney+, YouTube, Tencent Video, and other global/regional platforms enables one-stop viewing without switching devices.

• Ecosystem Integration: Functions as a smart home gateway, connecting speakers, lights, cameras, and controlling living room scenarios via voice commands.

2. Hardware Configuration and Interfaces

Core Hardware Specifications

Interface Adaptation

1. Video Output: HDMI 2.0 (4K@60fps) or HDMI 2.1 (8K/VRR), compatible with modern TVs, supports HDR and high-frame-rate content.

2. Audio Interfaces: HDMI ARC/eARC, optical output, supports Dolby Atmos/DTS:X for home theater and soundbar setups.

3. Expansion Interfaces: USB 3.0 (local 4K playback), Micro SD card (storage expansion), compatible with external drives and gaming peripherals.

4. Power & Form Factor: HDMI stick powered via HDMI, standalone box supports USB-C power, minimizing outlet usage in crowded living rooms.

3. System and Interaction Design

1. Operating System

• Open Ecosystem: Android TV/Google TV, supports Google Play and global streaming apps.

• Custom OS: Linux/Android-based with operator middleware, supports HBBTV standard for IPTV and local content integration.

• Partitioned System: Balances open app installation with operator compliance, ensures system stability and content security, suitable for mixed-family usage.

2. Interaction Experience

• Voice Control: Google Assistant/Amazon Alexa, multilingual, for program search, volume, and smart home control, suitable for all ages.

• Minimal Remote: Single remote controls TV and set-top box, one-touch access to live or on-demand content, reducing clutter.

• Content Discovery: AI recommendation engine aggregates multi-platform content, recommending by type, popularity, and history.

• Casting Compatibility: Chromecast, AirPlay, Miracast support one-touch casting from mobile devices or PCs.

4. Core Functions and Living Room Scenarios

1. Media Entertainment

• Ultra-HD playback: 4K@60fps / 8K@30fps decoding, HDR10+/Dolby Vision enhances visual quality for large living room screens.

• Multi-platform aggregation: Unified access to global streaming, IPTV live, time-shift/recording (7–14 days).

• Local playback: USB 3.0/SD card reads MKV, MP4, AVI, supports 4K@60fps decoding, integrates with NAS.

• Cloud gaming: Play AAA titles via Stadia, GeForce Now on big screens without extra consoles.

2. Smart Home and Lifestyle

• Scenario control: Voice commands trigger “Movie Mode” (lights dim, TV on, speaker linked).

• Family monitoring: Connects AI cameras for video calls and motion tracking, ideal for elders and children.

• Kids mode: Parental controls, viewing limits, eye protection, ensuring safe content.

• Photo display: Show mobile photos/videos via home cloud/DLNA for family gatherings.

5. Living Room Deployment and Optimization

1. Cabling & Space Planning: Prefer HDMI stick or compact boxes to reduce clutter; plug directly into HDMI without external power. Place standalone box unobstructed for stable Wi-Fi; wired network recommended.

2. Interaction & Settings: Remote pairing via CEC allows single remote operation; enable HDR/Dolby Vision for optimal display; maintain ≥2GB free storage for smooth app performance.

3. Network & Bandwidth: 4K@60fps requires ≥50Mbps, 8K ≥100Mbps; multi-platform playback needs higher bandwidth. Dual-band Wi-Fi 6/6E or Gigabit Ethernet ensures low latency and reliable coverage.

6. Development Trends

1. Miniaturization: HDMI sticks and GP MI insert devices reduce size 50–80%, no external power needed, ideal for ultra-thin TVs and minimalist living rooms.

2. Multi-Modal Interaction: Voice + gesture + gaze controls for long-distance operation, suitable for all ages.

3. Content as a Service: AI recommendations, unified subscriptions across platforms, reducing user effort.

4. Ecosystem Integration: Deep integration with TVs, speakers, cameras via Matter/Thread protocols, enabling scenario-based smart home control and positioning the box as a smart home hub.
